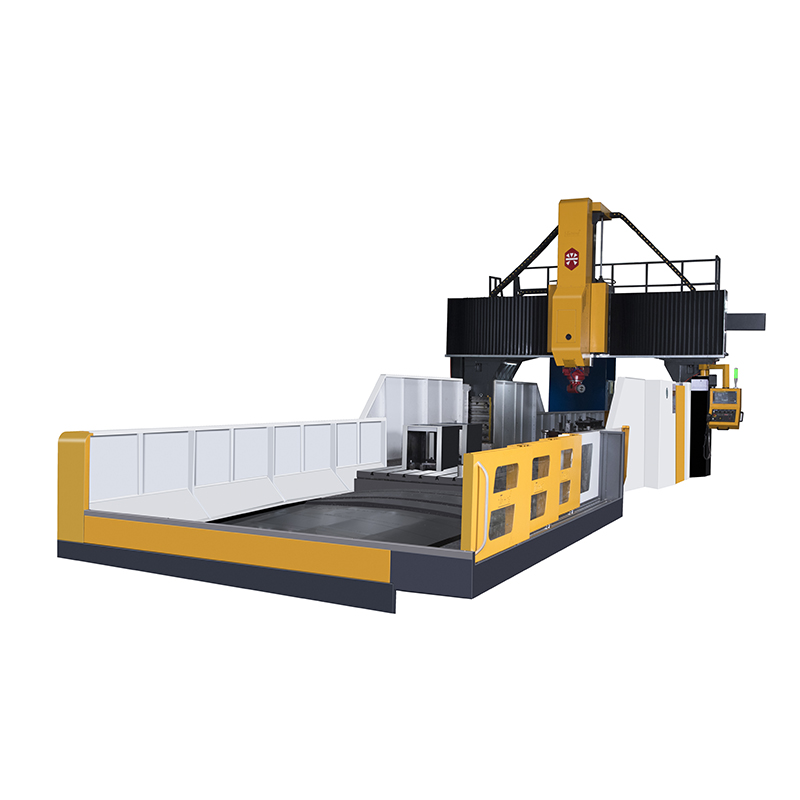

※ 機床采用龍門定梁框結構，長久保持良好的剛性和精度，扭矩大，動态特性佳，根據加工需求充分吸收了國際先進機床設計理念。 ※ 關鍵件包括床身、立柱、橫梁、滑鞍、滑枕、工作台等均選用高強度樹脂砂造型，高強度優質鑄鐵，可耐重切削并長期保持精度，穩定性高。 ※ 熱對稱主軸箱，高精度角接觸軸承安裝于主軸頭部和尾部，有效确保剛性和精度。采用加大直徑和厚度的主軸，進一步增強剛性。主軸選用大功率電機驅動，大馬力，高扭矩，即使在低轉速狀态下也可以實現高精度的重切削。 ※ 進給系統采用加大直徑、預拉伸的滾珠絲杆，增加絲杆剛性并能有效防止絲杆熱變形。 ※ 螺旋式與鏈式自動排屑結構相結合，确保排屑的順暢。 ※ X/Y軸采用進口超重負荷線性導軌，Z軸采用矩形淬 硬貼塑導軌，低磨損，高負載，确保機床的長期使用精度，可大幅提高切削時的精度與剛性。 ※ 主軸中心距Z軸導軌面距離短，大大減少翻轉力矩，提高剛性。主軸采用模塊化設計，多種功能模塊供客戶選擇，适用多種類型加工。 ※ X/Y/Z軸選用C3進口滾珠絲杆，兩端固定支撐，采用無齒輪隙增扭矩同步帶傳動，輸出扭矩大，移動速度快，加工性能好；預拉伸結構，采用高精度大接觸角精密軸承支撐，具有極高的移動精度和極佳的熱穩定性。 The machine adopts gantry fixed beam frame structure, which can keep good rigidity and precision for a long time. It has large torque and good dynamic characteristics. According to the processing demand, it fully absorbs the international advanced machine tool design concept. Key parts including the lathe, column, beam, wagen, ram, workbench, etc., are made of high strength resin sand, high strength and qualified cast iron, which can withstand heavy cutting and maintain long-term accuracy and high stability. Thermally symmetric headstock and high-precision angular contact bearings are mounted on the head and tail of the spindle, effectively ensuring rigidity and accuracy. The spindle with enlarged diameter and thickness is adopted to further enhance rigidity. The spindle is driven by high-power motor with high power and high torque, which can achieve high-precision heavy cutting even at low speed. The feed system adopts ball screw with enlarged diameter and pre-stretched, which can increase the rigidity of the screw and effectively prevent the thermal deformation of the screw. Screw and chain automatic chip removal structures are combined to ensure smooth chip removal. X/Y axis adopts imported heavy load linear guide rail, Z axis adopts rectangular hardened plastic guide rail, low wear, high load, to ensure the long-term usage of machine tool precision, and significantly improve the cutting precision and rigidity. The distance between the center of the spindle and the guide surface of Z axis is short, which greatly reduces the turning torque and improves the rigidity. The spindle adopts modular design with a variety of functional modules for customers to choose, and id suitable for various types of processing.. The X/Y/Z axis adopt C3 imported ball screw, and both ends are fixed and supported. It also uses gearless torque increasing synchronous belt transmission with high output torque, fast moving speed, and good machining performance. Pre-tensile structure, supported by high-precision high-contact angle precision bearings, with high movement accuracy and excellent thermal stability.
15989519333 (許先生)
在線咨詢 留言咨詢|
主要技(jì )術參數 |
|||
|
機械規格 |
名稱 |
規格 |
單位 |
|
行程 |
X軸行程 |
8000 |
mm |
|
Y軸行程 |
3600 |
mm |
|
|
Z軸行程 |
1250 |
mm |
|
|
主軸鼻端至工作台面距離 |
550-1800 |
mm |
|
|
龍門寬度 |
3600 |
mm |
|
|
工作台 |
工作台尺寸 |
3000×8000 |
mm |
|
[敏感詞]荷重 |
30 |
T |
|
|
T型槽（槽數-尺寸-間距） |
11-28 X 250 |
mm |
|
|
主軸 |
主軸轉速 |
6000 |
rpm |
|
主軸刀柄形式 |
BT-50 |
||
|
主軸直徑 |
Ø190 |
mm |
|
|
傳動方式 |
齒輪式 |
||
|
進給速度 |
快移速度X/Y/Z |
6 / 8/ 8 |
m/min |
|
切削進給速度 |
1~6000 |
mm/min |
|
|
機器精度(GBT 25658.1-2010) |
X/Y/Z 軸定位精度 |
±0.01/500 |
mm |
|
X/Y/Z 軸重複精度 |
±0.01 |
mm |
|
|
馬達 |
主軸馬達 |
22~35 |
KW |
|
X 、Y、Z軸驅動馬達 |
65/40/40 |
NM |
|
|
油泵 |
950 |
W |
|
|
占地空間 |
機械高度 |
6050 |
mm |
|
占地空間（長 × 寬） |
23600*5800 |
mm |
|
|
機械重量 |
85 |
T |
|
|
電氣總容量 |
50 |
KVA |
|
|
氣壓需求 |
0.5 ~ 0.8 |
MPa |
|
